Home >>  Products >> Solid Tires >> Solid tire for Skid Steer loader
  • Solid Skid steer tire SKS-5
  • Solid Skid steer tire SKS-5

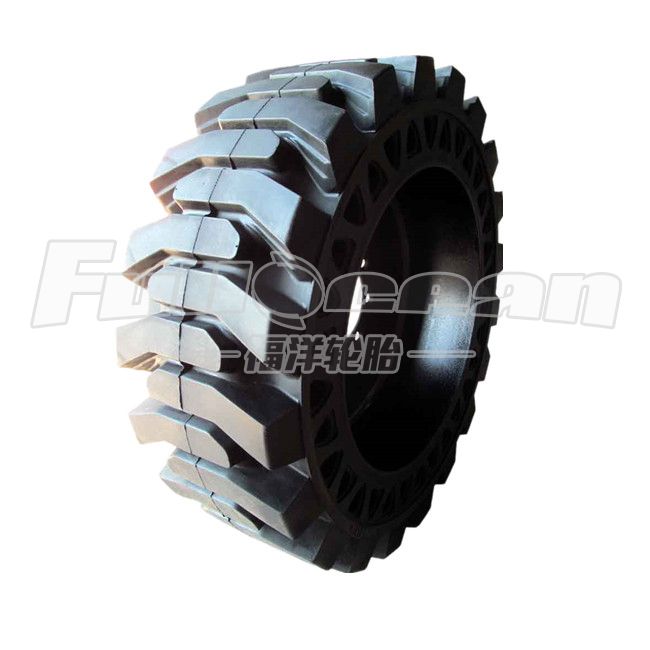

Solid Skid steer tire SKS-5

DurableMax

Applications:

all types of loaders, construction machinery and other vehicles.

SKID STEER LOADER :

Bobcat:  S130, S150, S160, S175, S185

John Deer: 313, 315, 317

Case: 410, 420

Komatsu: SK815-5, SK820-5

New Holland: LS140, LS150, LS160, LS170

Volvo: MC60, MC70

Mustang: 2044, 2054

JCB: 170, 180

GEHL: 4240E, 4640E, 5240E

...etc.




Product Details

1, Pattern descriptions:

Design character:

² Designed with large pattern, which is good for tires climbing, steering dexterity, start torque & tread grip performance;

² 3-later structure promised heavy loading capability & puncture proof performance;

² Deeper tread -Longer service life

² With side-hole design: heat release quicker; better shock absorption;

² Special tread rubber formula promise excellent wear resistance



Benefits of solid tires with rim(spoke): With quick and easy installation, tire weight is small, fast heat dissipation, long life and other characteristics, reducing the impact on the axle load and improve the speed;



2, Products Technical Details:

No

Size

Rim size

Overall Diameter

Section Width

Max Load

Tire With hole

Inch

mm

mm

Kgs

YES/NO

1

5.7-12

4.00-12

558

144


YES/NO

2

10-16.5(30x10x16)

FB/6.00

785

250

3700

YES/NO

3

10-16.5(31x6x10)

FB

787

251

3420

YES/NO

4

12-16.5(33x12x20)

FB/7.50

835

280

4500

YES/NO

5

12-16.5(33x6x11)

FB

838

276

4080

YES/NO

6

13.00-24

8.50-24

1310

330


YES/NO

7

14.00-24

10.00-24

1356

360


YES/NO

8

15.00-20

11.00-20

970

370

7500

YES/NO

9

16/70-16

9.50-16

905

290

5965

YES/NO

10

16/70-20

13.00-20

1060

380

8830

YES/NO

11

16/70-20(Economic)

FB

930

320

6300

YES/NO

12

16/70-24

13.00-24

1080

390

7390

YES/NO

13

17.5-25

14.00-25

1356

360


YES/NO

14

17.5-25

FB

1358

458

15950

YES/NO

15

18.00-20

14.00-20

1082

458


YES/NO

16

20.5/70-16

9.50-16

895

280

5965

YES/NO

17

20.5-25

17.00-25

1490

520


YES/NO

18

23.5-25

19.50-25

1625

600


YES/NO

19

23.5-25

FB

1600

496

24400

YES/NO

20

23x8.5-12

6.00-12

584

210


YES/NO

21

30x10x16

6.00-16

765

236


YES/NO

22

30x10x16

6.00-16

790

236


YES/NO

23

30x10x20

7.00-20

790

236


YES/NO

24

31x10-20

FB/7.50

785

250

3700

YES/NO

25

31x10x18

7.00-18

765

246


YES/NO

26

33x10x20

7.00-20

837

254


YES/NO

27

34x10x20

7.00-20

863

254


YES/NO

28

36x12x20

8.00-20

915

305


YES/NO

29

36X12.5-20

9.00-20

916

336

5650

YES/NO

30

36x14-20

8.50

918

335

5865

YES/NO

31

38.5x14-20(14-17.5)

FB

966

350

7070

YES/NO

32

385/65-24(385/65-22.5)

10.00-24

1060

390

6650

YES/NO

33

445/65-24(445/65-22.5)

FB

1152

428

10040

YES/NO

34

27x12x15

under developing

35

36x7x11

under developing

36

36x14-24

under developing

37

41x11.5-24

under developing



3, Applications:

Applications:  all types of loaders, construction machinery and other vehicles.

SKID STEER LOADER :

Bobcat:  S130, S150, S160, S175, S185

John Deer: 313, 315, 317

Case: 410, 420

Komatsu: SK815-5, SK820-5

New Holland: LS140, LS150, LS160, LS170

Volvo: MC60, MC70

Mustang: 2044, 2054

JCB: 170, 180

GEHL: 4240E, 4640E, 5240E

...etc.



4, OEM remarks:

We can produce tires with rim using cured-on production technology; But we need your support for bulk or OEM production.

We need to know wheel spoke details as below:

1) Model

2) Screw hole number(quantity) and diameter of the hole

3) Offset

4) P.C.D

5) Centre hole Diameter

6) If you have drawing will better (photos also okay)

7) Your using conditions (temperature, road, loading, lasting use time...etc)

5, Our services:

² R&D support

² After sales warranty & guarantee

² Sample for testing

² Testing report

² Special certificates operation, example:SABER, SGS, INTERTECK...

² Nice packing

² Customer clearance doc

² Shipments arrangement



6, Business Terms:

① Delivery time: within 30 days generally.If urgent order, we can shipping within 7 days without delay.

② Customized brand: acceptable for regular order

③ Payments term : T/T, Western Union, Cash, Paypal;

④ Mini order qty: no quantity limitation. But if less than one container, customer need to bear domestic logistic(transportation) cost from factory warehouse to port.
